Below you will find information about our standard products. Click on product picture or pdf-picture for more information ...

Gearshift Controller TTT802-S,  -P



Gearshift Controller for 4, 5, 6 or 7 speed sequential gearbox with gear sequence R-N-1-2-3.....

With 58 mm large red gear indicator display and Rpm / shift-light-bar with green, yellow, red white Led

Key features:

-   Gear Position Indicator

-   Rpm / Shift-light Led-bar

-   Closed Loop Flat-shift control

-   Closed Loop Paddle-shift control with program version -P

-   Rpm limiter

-   Launch control

-   Measuring Gearshift times in 1/1000 sec.

-   Measuring Gearbox Race time

-   Fuel Pump control

-   Reverse Light control

-   Oil change indicator

-   Automatic display intensity

-   Tractive approved

-   Special functions on request

-   Log function. Data can be logged to file up to 250 times/sec.





Gearshift Controller TTT802R1N-S,  -P:  Type for sequential gearbox with gear sequence R-1-N-2-3......



Gearshift Controller TTT802-L:  Type for 4 or 5 speed H-pattern gearbox with seq-kit.



   FAQ document

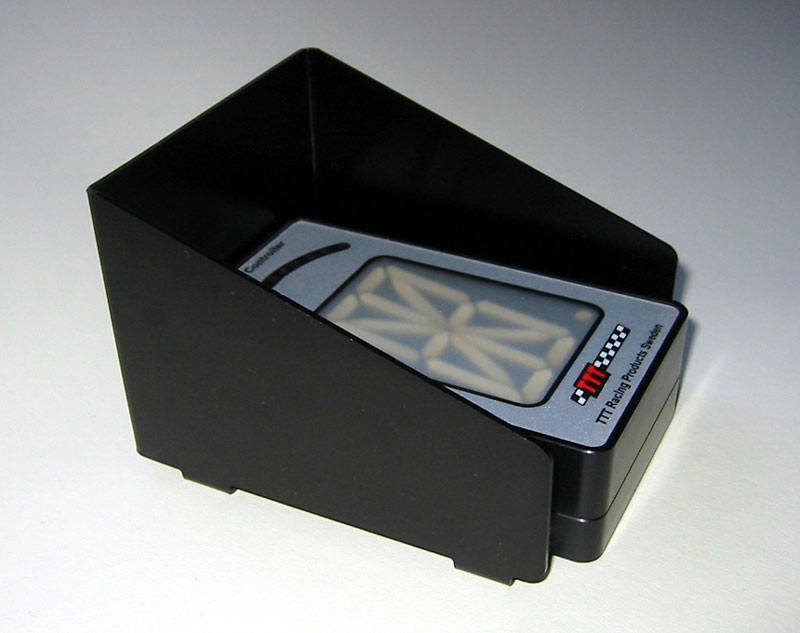

Sun Visor TTT802



Easy to fit sun visor for Gearshift Controller TTT802

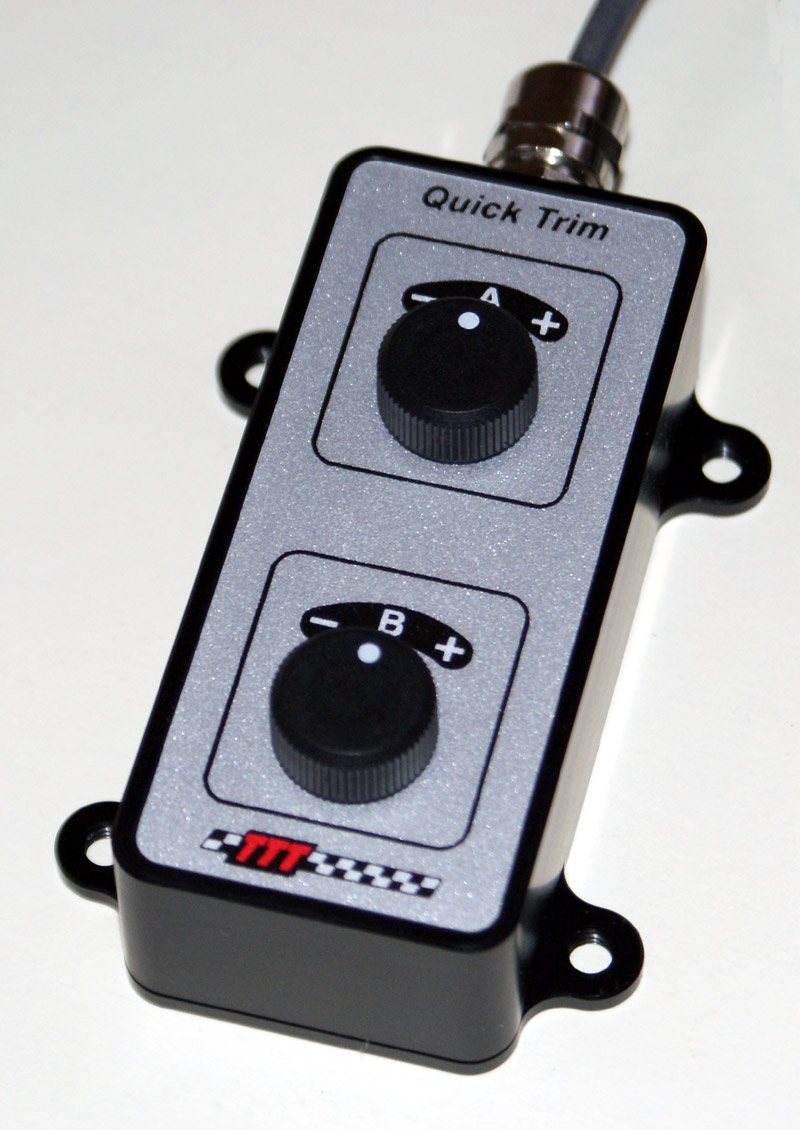

Quick Trim TTT905



Quick Trim unit with cable and connector. Can be used in different applications and one of them is adjusting Launch control settings in the TTT802 Gearshift Controller.

Key features:

-   Dual potentiometers

-   1200 mm cable with SureSeal connector

-   Direct indication of potentiometer position on the TTT802 Rpm-bar makes it

     very quick and easy to adjust

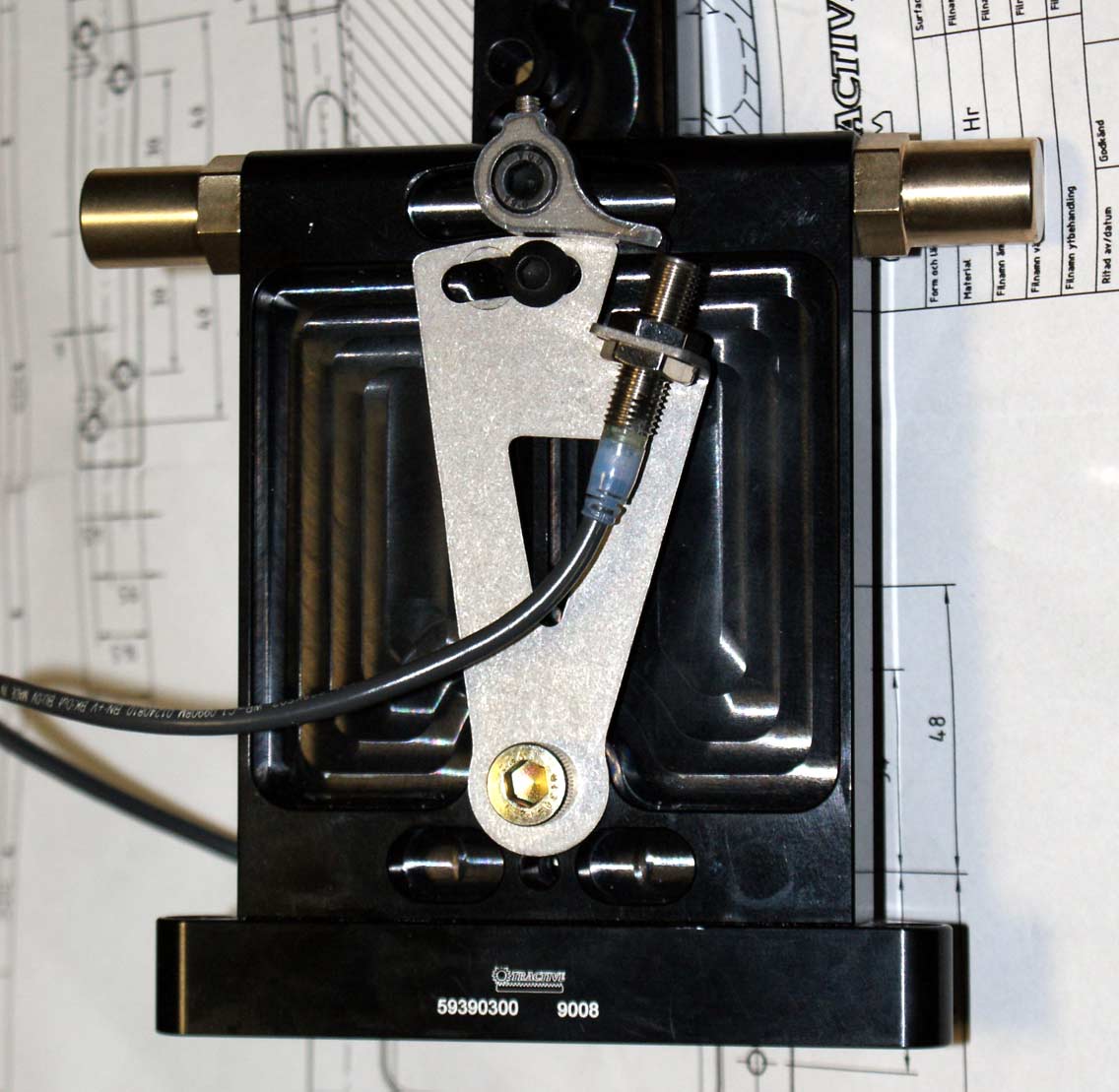

Mounting bracket for 8mm sensor on Tractive gearlever.

Suitable sensor is Proximity sensor E2A with part# 30-521-9.

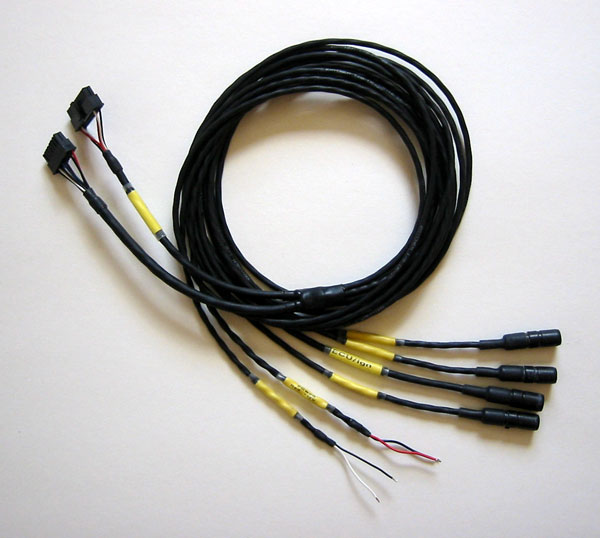

TTT802-S Cable harness DR25/Spec.44

Professional Raychem DR25/Spec.44 Cable harness with fitted Waterproof connectors. For the TTT802-S Gearshift Controller with Flatshift.

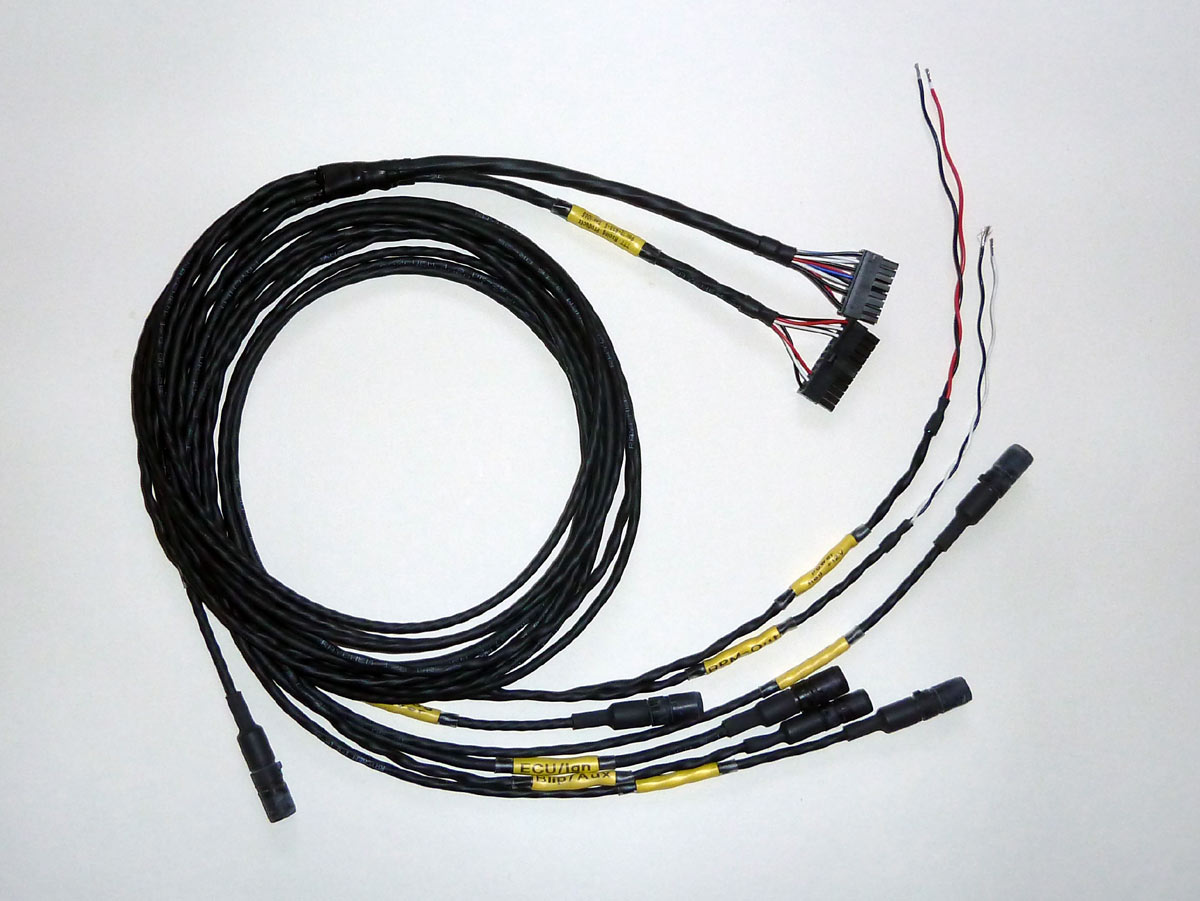

TTT802-S2 Cable harness DR25/Spec.44   NEW!

Professional Raychem DR25/Spec.44 Cable harness with fitted Waterproof connectors. For the TTT802-S Gearshift Controller with Flatshift. Just like the TTT802-S harness but with the TTT802-BAL "Add-on" cables/connectors for "Blip/Aux" and "Analog Lever" already fitted.

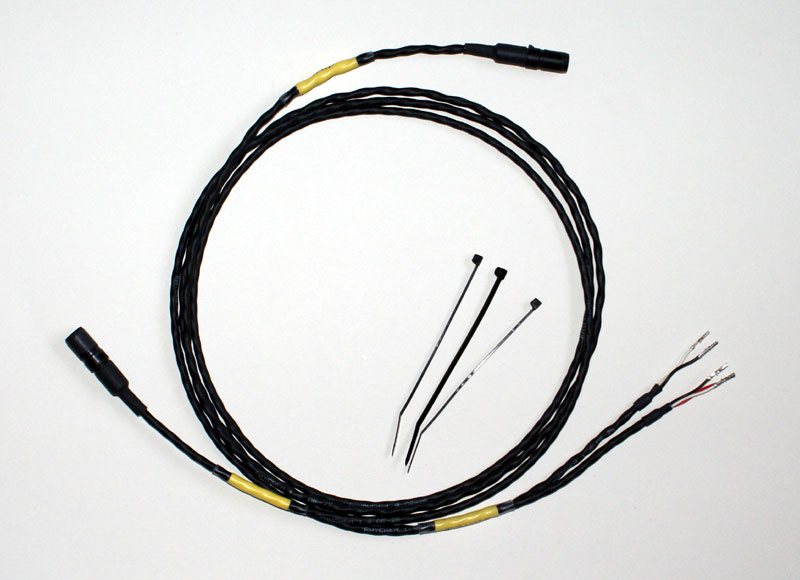

TTT802-BAL "Add-on" Cable harness  for Blip and Analog Lever, DR25/Spec.44

Professional Raychem DR25/Spec.44 Cable harness with fitted Waterproof connectors. Add-on to the TTT802-S Cable harness.

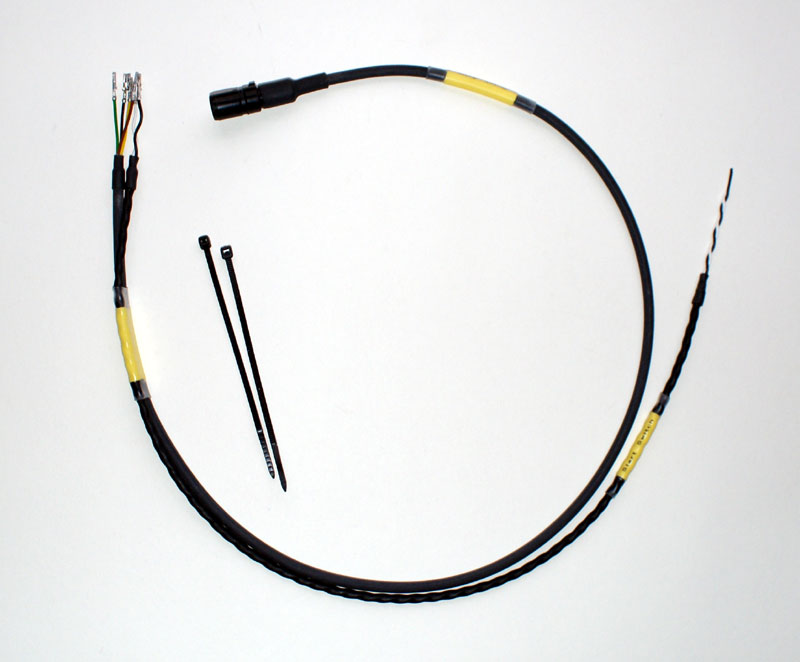

TTT802-QT  "Add-on" Cable harness for TTT905 Quick Trim (Launch Control) and Start-Switch, DR25/Spec.44

Professional Raychem DR25/Spec.44 Cable harness with fitted Waterproof connector. Add-on to the TTT802-S Cable harness.

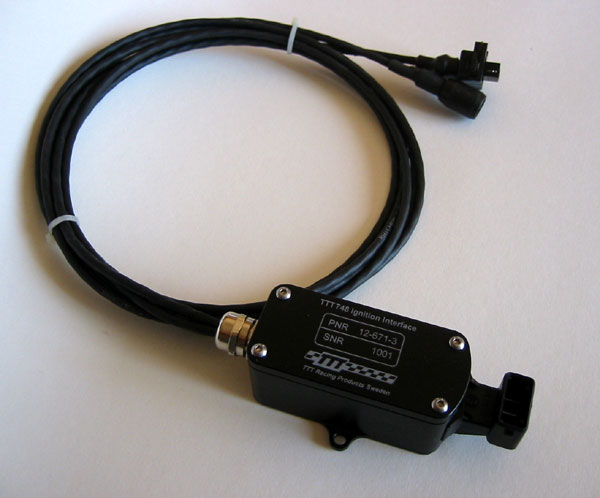

TTT748-BV Ignition Interface ”ignition cut”

For TTT802 Gearshift controller when used with carburettor equipped engines with hall element distributor. Integrated connectors for Bosch/Volvo distributor.

TTT937-S Power Switch, Ignition Interface ”ignition cut”

Interrupts Vbat to ignition coil(s). Connected to TTT802 cable harness this will be the ”ignition cut” interface and the TTT802 can control flatshift during gearshifts as well as being a rpm-limiter. 90 Amp Peak current, 14 Amp continuous. Switching time better than 100uS (0.0001 sec)

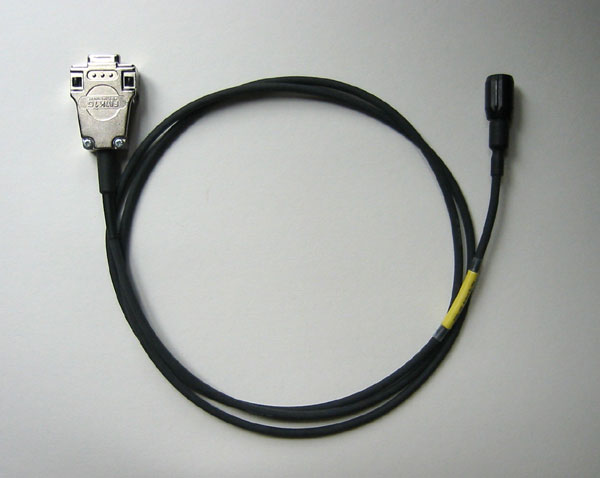

TTT802 Communication cable RS232

Professional 1.5 m communication cable with fitted Waterproof connector and 9-pole Dsub with metal housing.

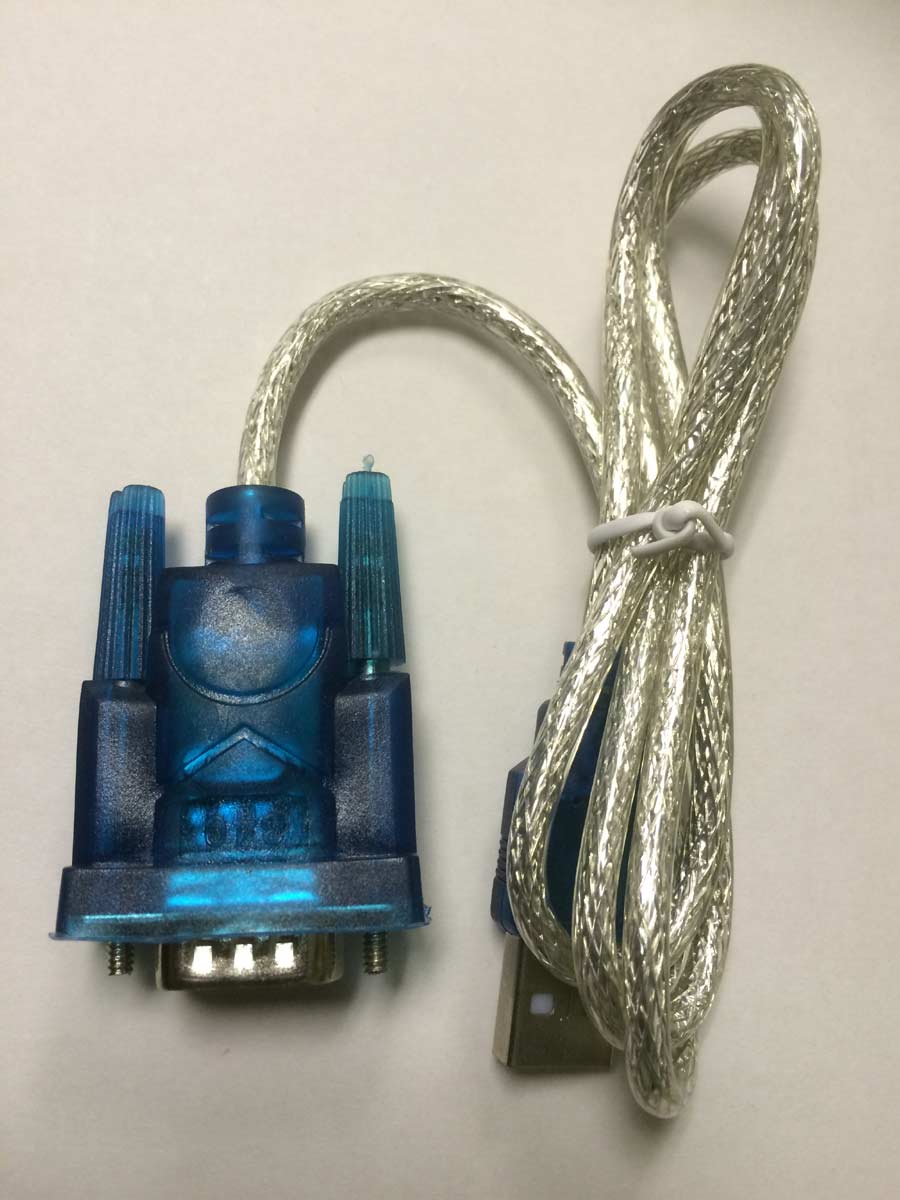

USB-RS232 Converter

Use this converter in case your PC dont have a 9-pole RS232 communication port.

Click the picture on the left to download driver (zip-file).

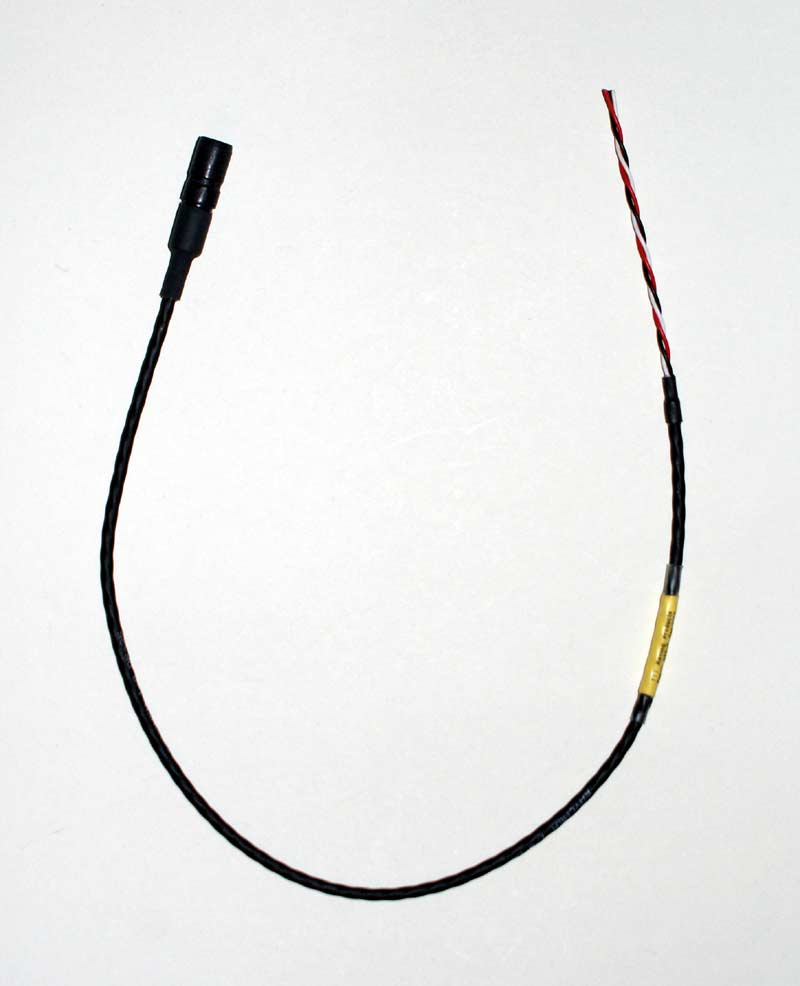

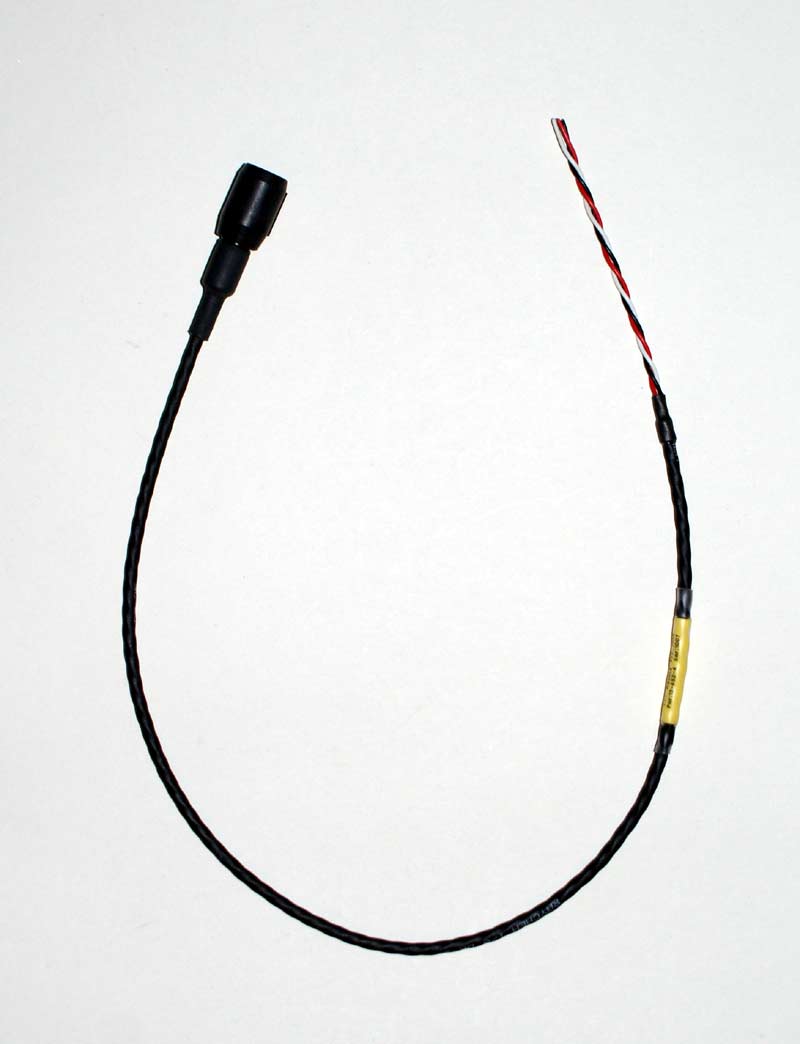

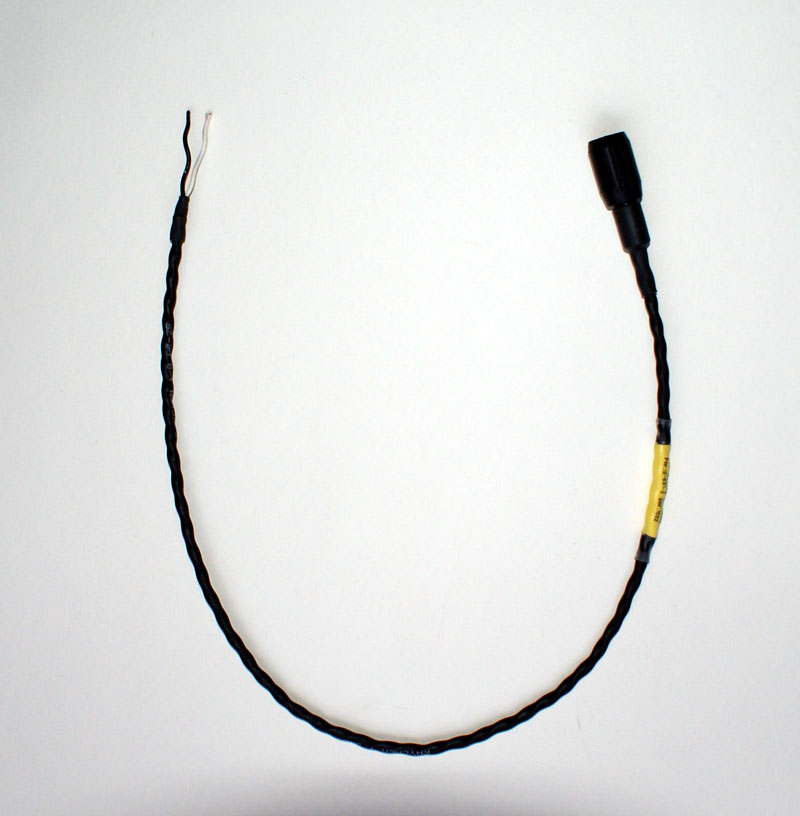

2-Pole, AWG20, 500mm Extension Cable DR25/Spec.44

Professional Raychem DR25/Spec.44 Extension Cable with fitted 2-pole Waterproof female connector and flying leads. For the TTT802 Gearshift Controller. Can be used to connect "Blip" to TTT802.

3-Pole, AWG22, 500mm Extension Cable DR25/Spec.44

Professional Raychem DR25/Spec.44 Extension Cable with fitted 3-pole Waterproof female connector and flying leads. For the TTT802 Gearshift Controller.

3-Pole, AWG22, 500mm Extension Cable DR25/Spec.44

Professional Raychem DR25/Spec.44 Extension Cable with fitted 3-pole Waterproof male connector and flying leads. For the TTT802 Gearshift Controller.

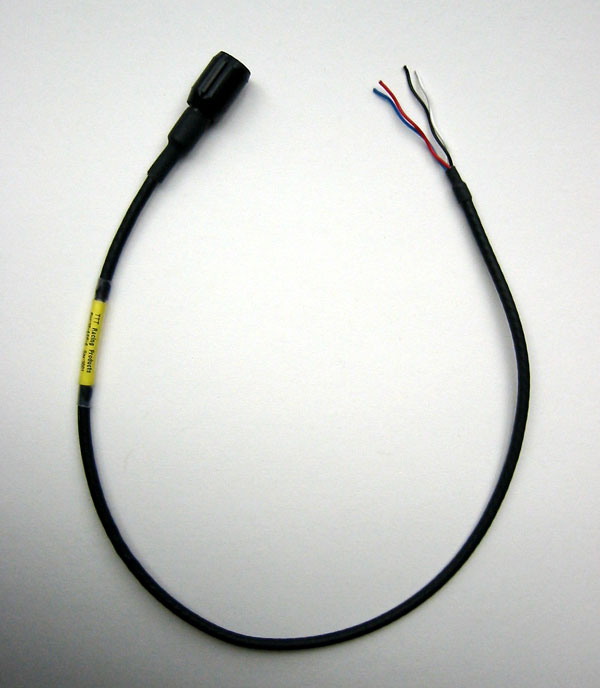

4-Pole, AWG22, 500mm Extension Cable DR25/Spec.44

Professional Raychem DR25/Spec.44 Extension Cable with fitted 4-pole Waterproof female connector and flying leads. For the TTT802 Gearshift Controller. Can be used to connect "ECU" to TTT802.

Gearbox indicator TTT031

A compact unit with a large 56,8mm dual color display having a bright, clear appearance. The display indicates present gear and at the same time it alerts for high rpm. It is very simple to setup. With simple commands it automatically memorizes all gear positions!

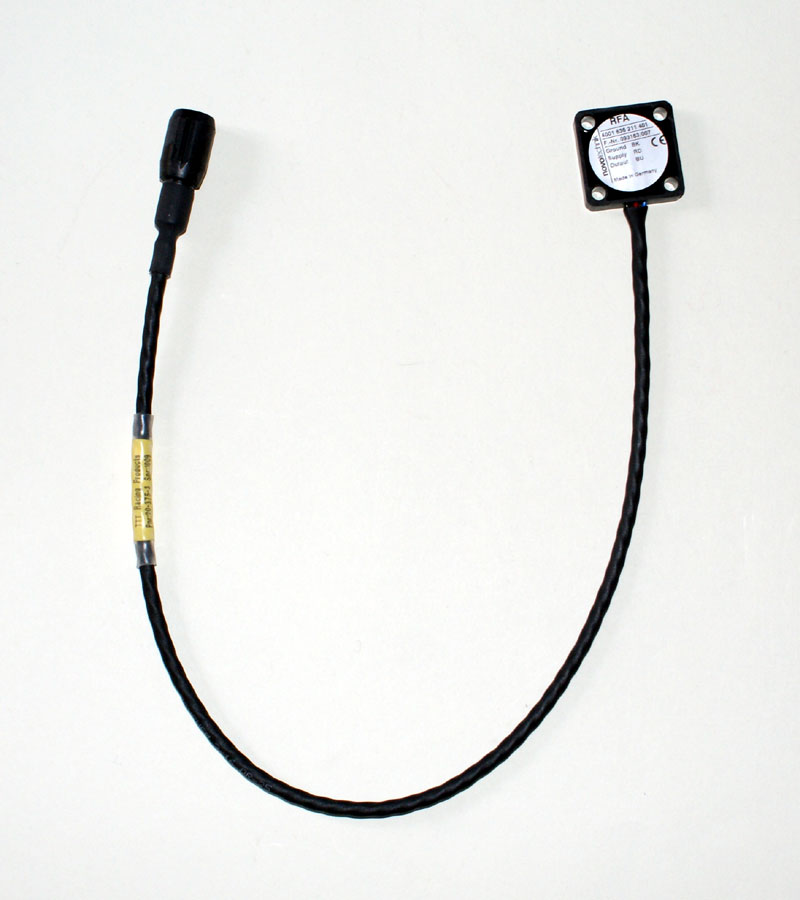

RFA360-5KP



RFA360 - 360 degrees Gearbarrel (rotary) sensor - With unlimited mechanical lifetime!

Transmissive technology with separate position marker (magnet). With fitted waterproof SureSeal connector.

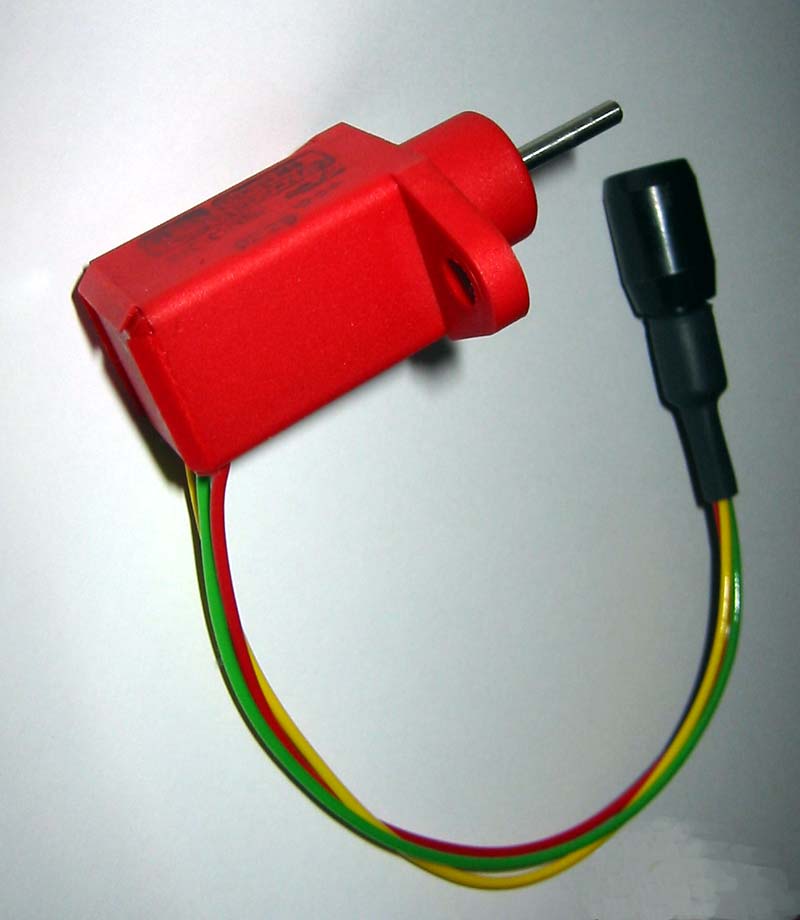

 Contactless Rotative sensor VGX

Contactless rotative sensor in plastic housing with push on mechanical connection. Supplied with 30 cm hightemp  cable with or without waterproof SureSeal electrical connector to fit directly to the TTT031 Gearbox indicator unit. Supplied in 2 different types. VGX100 and VGX360 (100 / 360 degrees resolution).

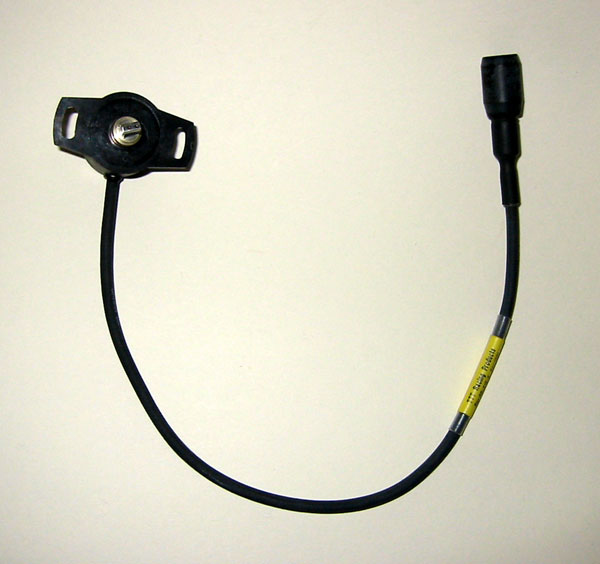

Potentiometer POT5K  (Replaced with VGX360)

Potentiometers for Gearbox indicator TTT031. We supply different types with different electrical turning angles, 308 and 345 degrees. Can be supplied with plastic or  aluminium housing and with different type connectors.

Linear potentiometer POT5K-L

Potentiometer for Gearbox indicator TTT031. Can be supplied with different type connectors.

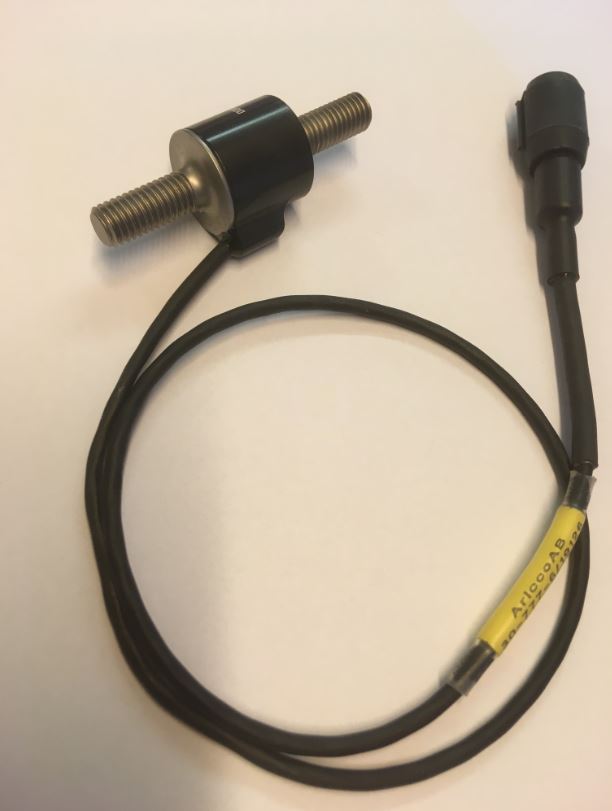

Load Cell GSS /500-5KP

Load Cell +/-500N M8x1.25 LH/RH. 5 or 12 Volt Supply voltage. Output 0.5 to 4.5V. With waterproof SureSeal connector.

Hallsensor 55075

Hallsensor ideal to generate speed pulses. With waterproof SureSeal connector.

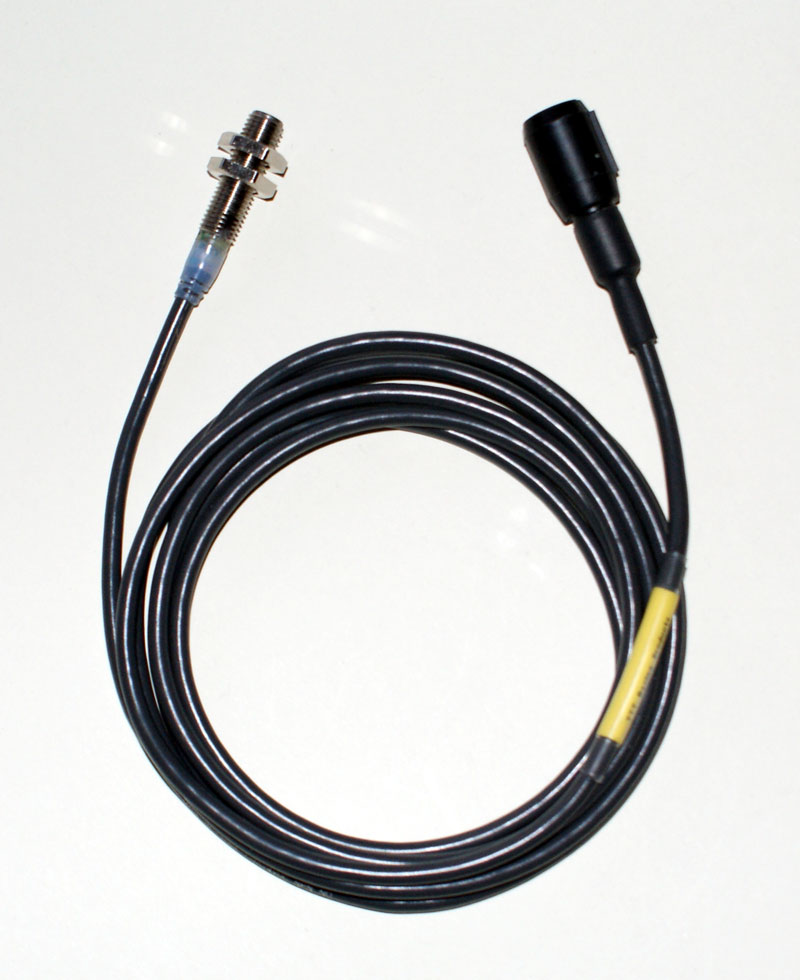

Proximity sensor E2A

Ideal for detecting Gearlever position. With waterproof SureSeal connector.

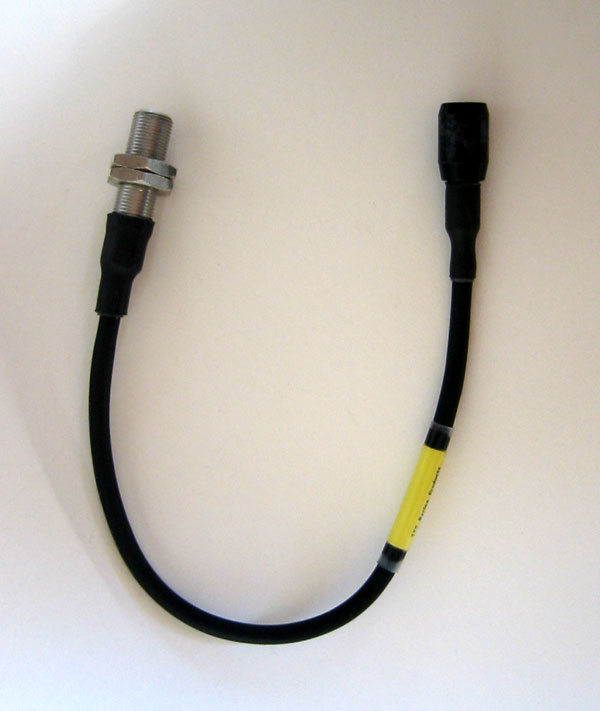

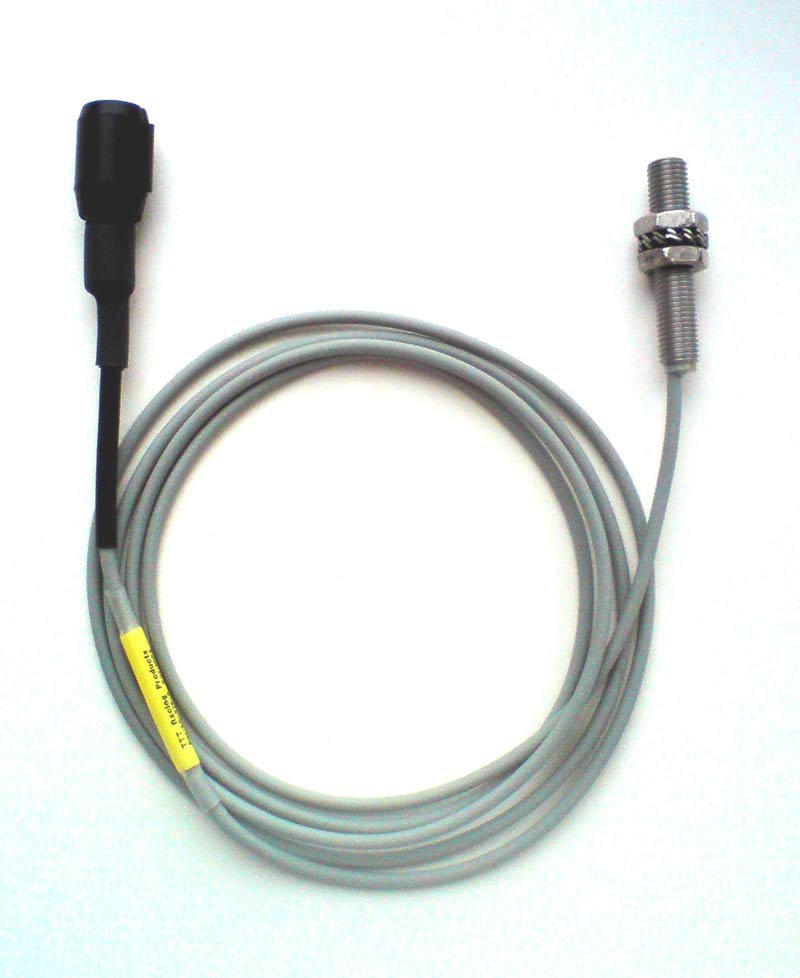

Proximity Sensor NPN high temp. M8 x 1

Typical application is position sensor in/on gearbox housing. With waterproof SureSeal connector.

Gear Tooth Sensor HALGT1

Ideal for accurate sensing the movement of ferrous metal.

Ignition Coil Denso D580

Custom Products

Tell us what you need and we will find a solution for your particular application.
